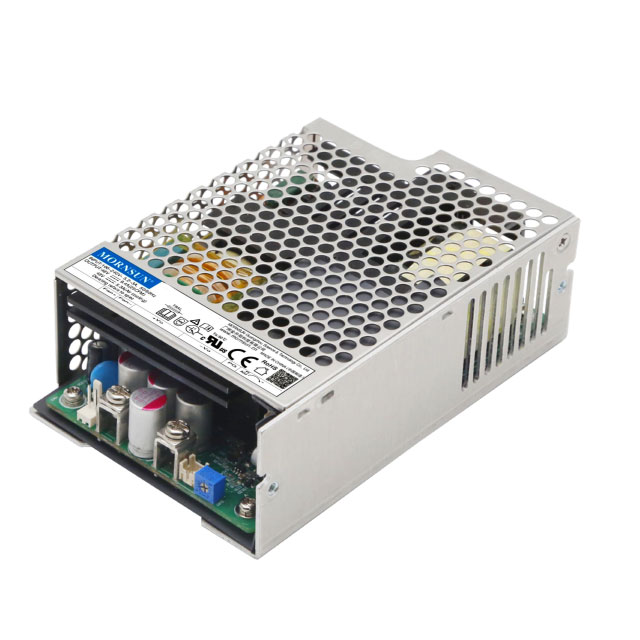

- Product Model LOF450-20B24
- Brand Mornsun
- RoHS 1
- Description AC/DC CONVERTER 24V 252W
- Classification ac-dc-converters
-
PDF
Technical Details
- Power (Watts) 252W (450W Forced Air)
- Features Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input
- Size / Dimension 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm)
- Mounting Type Chassis Mount
- Voltage - Input 90 ~ 264 VAC, 127 ~ 370 VDC
- Type Open Frame, Conformal Coated
- Operating Temperature -40°C ~ 70°C (With Derating)
- Applications Household Appliances, ITE (Commercial), Laboratory
- Approval Agency CE, cURus, UL
- Efficiency 93%
- Voltage - Output 1 24V
- Minimum Load Required No
- Number of Outputs 1
- Voltage - Isolation 4 kV
- Standard Number 60335-1; 60601-1; 62368-1
- Current - Output 1 18.75 A
