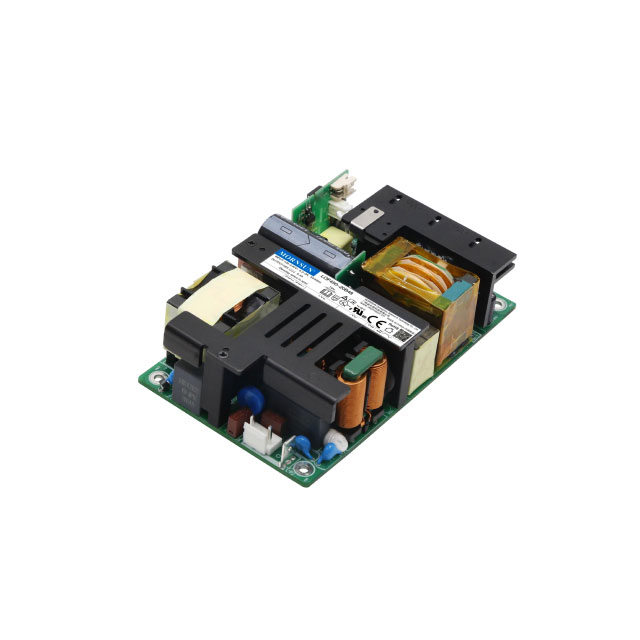

- Product Model LOF225-20B24
- Brand Mornsun
- RoHS 1
- Description AC/DC CONVERTER 24V 140W
- Classification ac-dc-converters
-
PDF
Technical Details
- Power (Watts) 140W
- Features Adjustable Output, PFC, Standby Output, Universal Input
- Size / Dimension 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm)
- Mounting Type Chassis Mount
- Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
- Type Open Frame
- Operating Temperature -40°C ~ 70°C (With Derating)
- Applications Household Appliances, ITE (Commercial), Medical
- Approval Agency CE, cURus
- Efficiency 94%
- Voltage - Output 1 24V
- Minimum Load Required No
- Number of Outputs 1
- Voltage - Isolation 4 kV
- Standard Number 60335-1; 60601-1; 62368-1
- Current - Output 1 5.83 A
Related Products

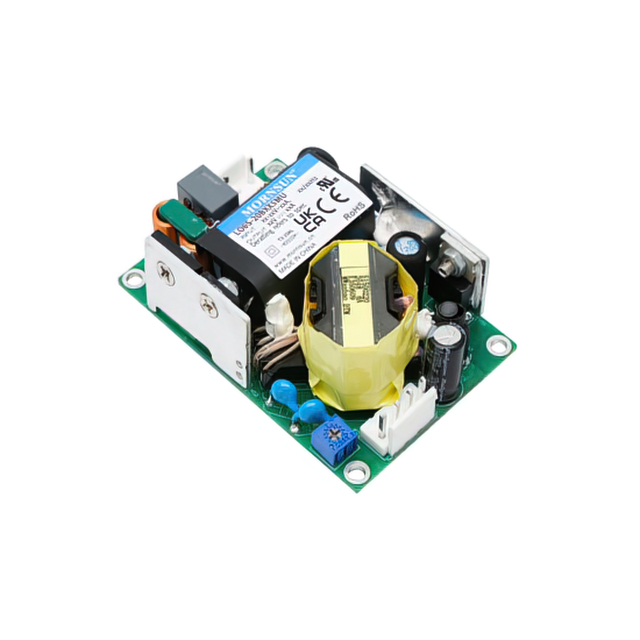

AC/DC CONVERTER 24V 65W
