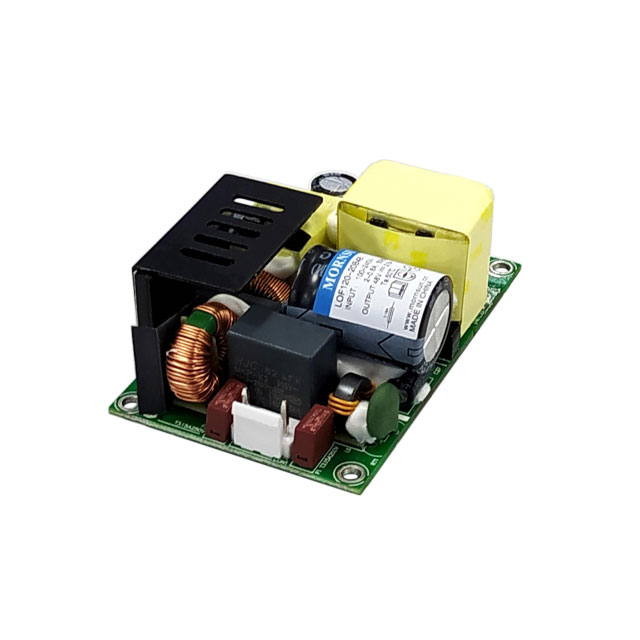

Technical Details

• Power (Watts) 120W
• Features Adjustable Output, PFC, Standby Output, Universal Input
• Size / Dimension 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm)
• Mounting Type Chassis Mount
• Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
• Type Open Frame
• Operating Temperature -40°C ~ 85°C (With Derating)
• Applications Household Appliances, ITE (Commercial), Medical
• Approval Agency CE, cURus
• Efficiency 95%
• Voltage - Output 1 24V
• Minimum Load Required No
• Number of Outputs 1
• Voltage - Isolation 4 kV
• Standard Number 60335-1; 60601-1; 62368-1
• Current - Output 1 5 A
