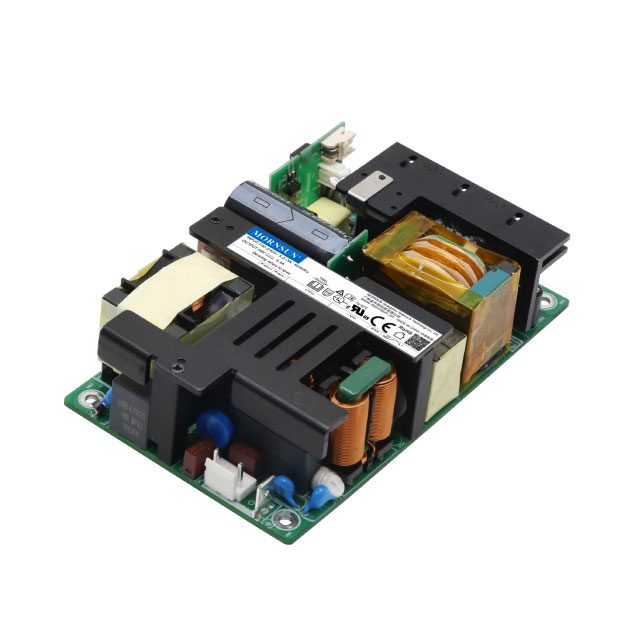

- Product Model LMF600-20B48
- Brand Mornsun
- RoHS 1
- Description AC/DC CONVERTER 48V 605W
- Classification ac-dc-converters
-
PDF
Technical Details
- Power (Watts) 605W
- Features Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output
- Size / Dimension 4.00" L x 8.00" W x 1.60" H (101.6mm x 203.1mm x 40.6mm)
- Mounting Type Chassis Mount
- Voltage - Input 80 ~ 277 VAC, 110 ~ 390 VDC
- Type Enclosed
- Operating Temperature -40°C ~ 70°C (With Derating)
- Applications Household Appliances, ITE (Commercial), Medical
- Approval Agency BS, CB, CCC, CE, cURus, EN, IEC, UKCA, UL
- Efficiency 94%
- Voltage - Output 1 48V
- Minimum Load Required No
- Number of Outputs 1
- Voltage - Isolation 4 kV
- Standard Number 60335-1; 60601-1; 62368-1
- Current - Output 1 12.6 A
