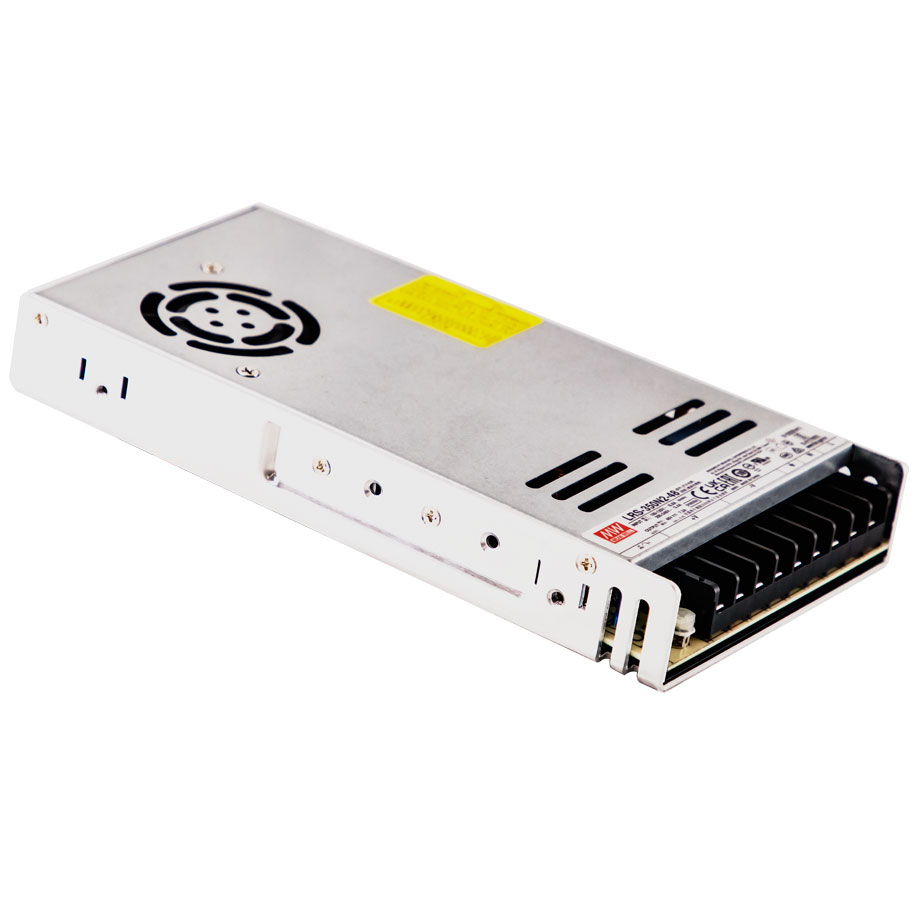

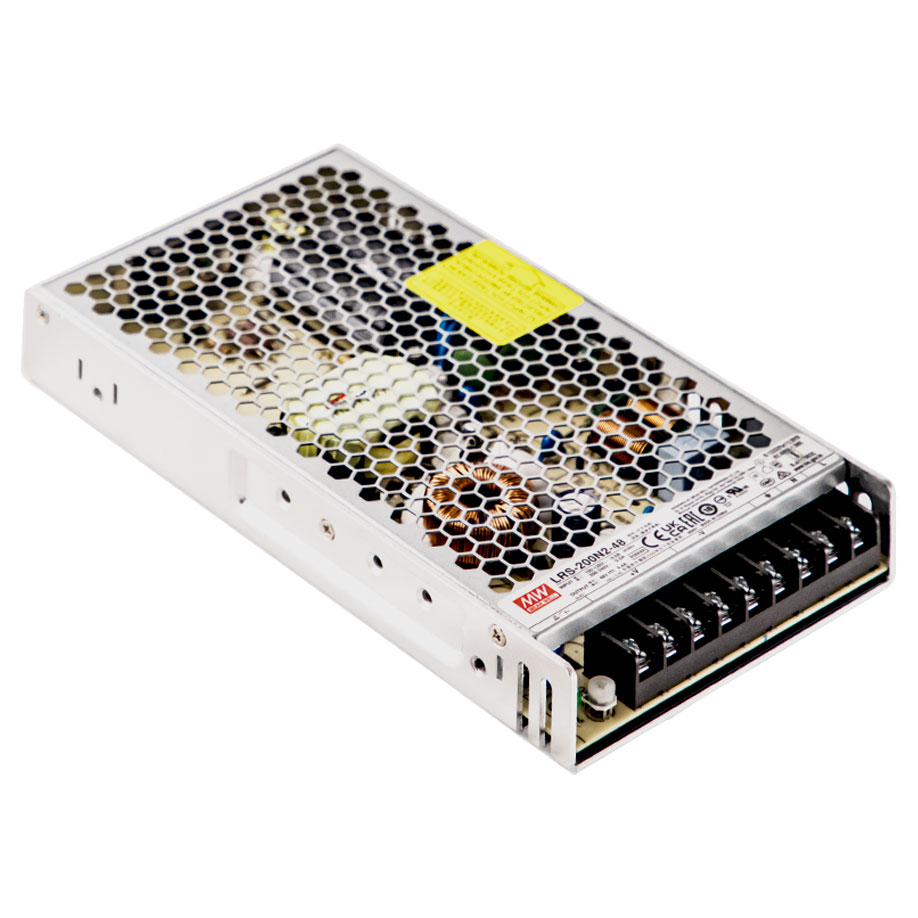

- Product Model LRS-200N2-48
- Brand MEAN WELL
- RoHS 1
- Description O/P +48V4.4A
- Classification ac-dc-converters
-
PDF
Inventory:1511
Technical Details
- Power (Watts) 211W
- Features Adjustable Output, DC Input Capable, Universal Input
- Size / Dimension 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm)
- Mounting Type Chassis Mount
- Voltage - Input 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC
- Type Enclosed
- Operating Temperature -25°C ~ 70°C (With Derating)
- Applications ITE (Commercial)
- Approval Agency CB, CE, CQC, cURus, EAC, UKCA
- Efficiency 90%
- Voltage - Output 1 48V
- Number of Outputs 1
- Voltage - Isolation 3.75 kV
- Standard Number 62368-1
- Current - Output 1 4.4 A
