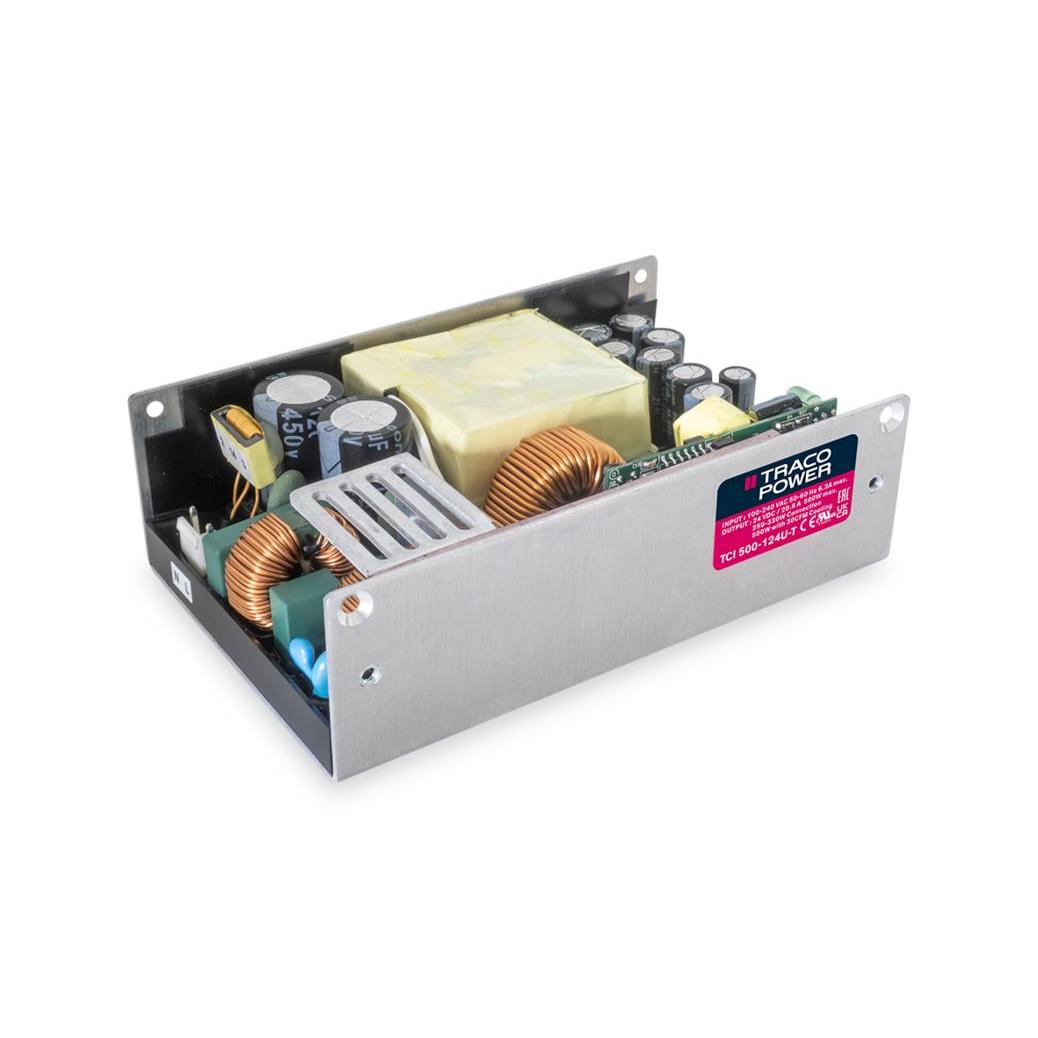

- Product Model TCI 500-124U-T
- Brand TRACO Power
- RoHS 1
- Description 500 WATT U-BRACKET CONDUCTION CO
- Classification ac-dc-converters
-
PDF
Technical Details
- Power (Watts) 499W
- Features Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input
- Size / Dimension 5.12" L x 3.27" W x 1.57" H (130.0mm x 83.0mm x 40.0mm)
- Mounting Type Chassis Mount
- Voltage - Input 90 ~ 264 VAC, 127 ~ 370 VDC
- Type Open Frame
- Operating Temperature -30°C ~ 80°C
- Applications ITE (Commercial)
- Approval Agency CB, cURus
- Efficiency 91%
- Voltage - Output 1 24V
- Minimum Load Required No
- Number of Outputs 1
- Voltage - Isolation 4.25 kV
- Standard Number 62368-1
- Current - Output 1 20.8 A
Related Products
130 WATT ENCASED CONDUCTION COOL
Inventory: 0
130 WATT ENCASED CONDUCTION COOL
Inventory: 10

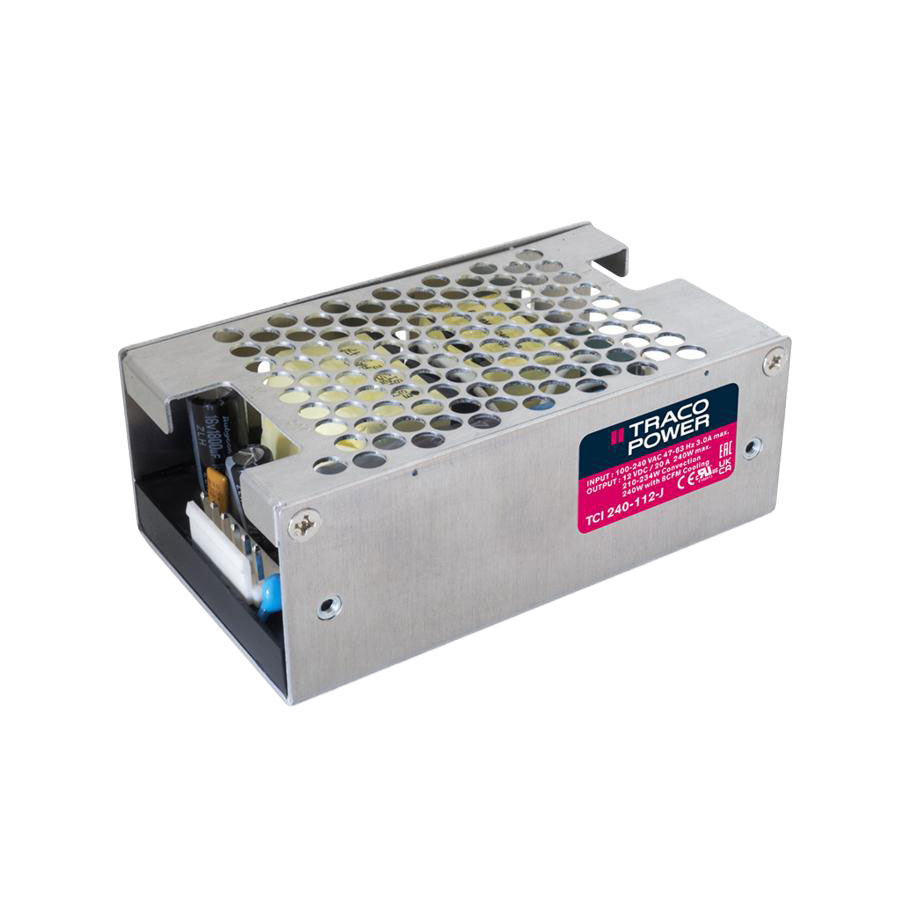

240 WATT ENCASED CONDUCTION COOL
