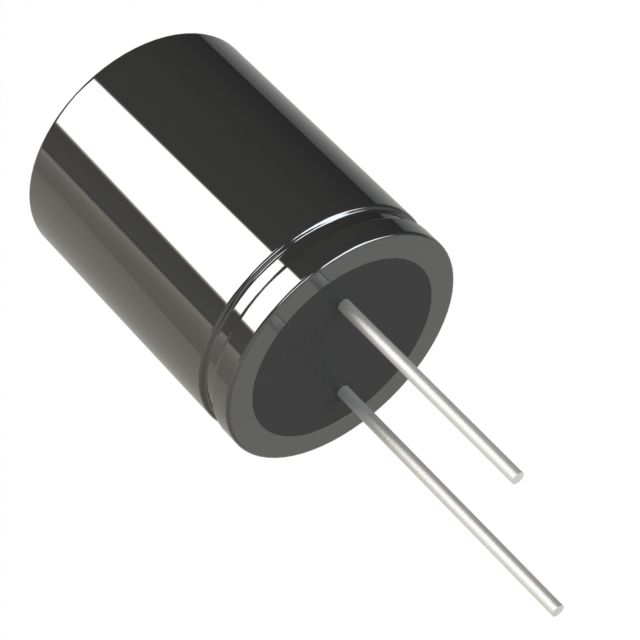

- Product Model REF1620681M063B
- Brand KYOCERA AVX
- RoHS 1
- Description SERIES: REF/ CASE: 1620/ CAP: 68
- Classification aluminum-electrolytic-capacitors
-
PDF
Inventory:1500
Technical Details
- Tolerance ±20%
- Package / Case Radial, Can
- Size / Dimension 0.630" Dia (16.00mm)
- Polarization Polar
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 105°C
- Applications General Purpose
- Lead Spacing 0.295" (7.50mm)
- Lifetime @ Temp. 6000 Hrs @ 105°C
- Height - Seated (Max) 0.866" (22.00mm)
- Capacitance 680 µF
- Voltage - Rated 63 V
- Impedance 85 mOhms
- Ripple Current @ Low Frequency 750 mA @ 120 Hz
- Ripple Current @ High Frequency 1.25 A @ 100 kHz
