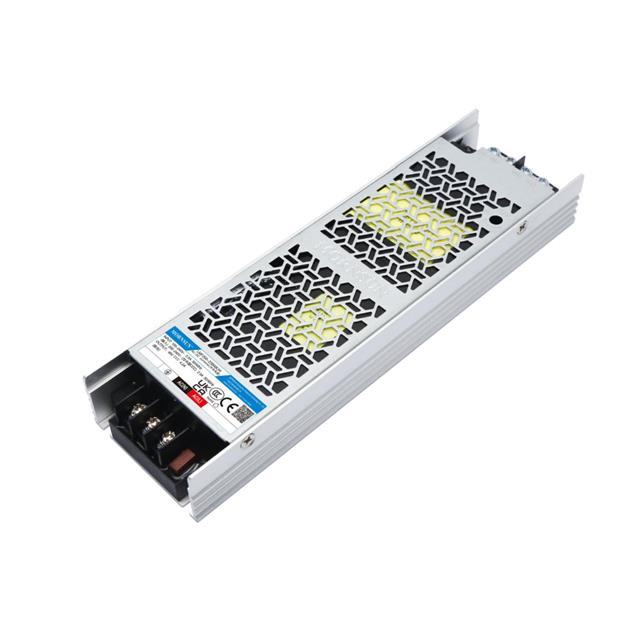

Technical Details

• Power (Watts) 211W
• Features Adjustable Output, DC Input Capable
• Size / Dimension 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm)
• Mounting Type Chassis Mount
• Voltage - Input 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC
• Type Enclosed
• Operating Temperature -40°C ~ 85°C (With Derating)
• Applications Household Appliances, ITE (Commercial)
• Efficiency 91%
• Voltage - Output 1 24V
• Minimum Load Required No
• Number of Outputs 1
• Voltage - Isolation 4 kV
• Standard Number 60335-1; 62368-1
• Current - Output 1 8.8 A
