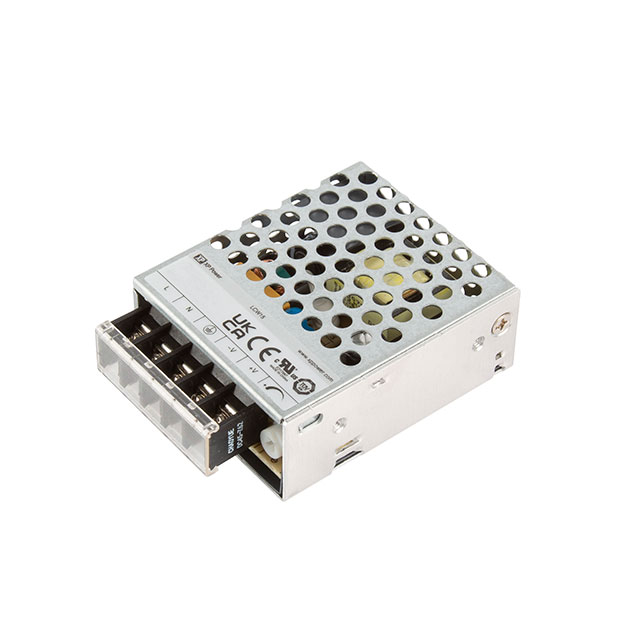

- Product Model LCW15US24
- Brand XP Power
- RoHS 1
- Description AC/DC CONVERTER 24V 15W
- Classification ac-dc-converters
-
PDF
Inventory:2207
Technical Details
- Power (Watts) 15W
- Features Adjustable Output, Remote On/Off
- Size / Dimension 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm)
- Mounting Type Chassis Mount
- Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
- Type Enclosed
- Operating Temperature -30°C ~ 70°C (With Derating)
- Applications ITE (Commercial), Industrial
- Approval Agency CE, EN, UKCA, UL
- Efficiency 83%
- Voltage - Output 1 24V
- Minimum Load Required No
- Number of Outputs 1
- Voltage - Isolation 4 kV
- Standard Number 62368-1
- Current - Output 1 625 mA
